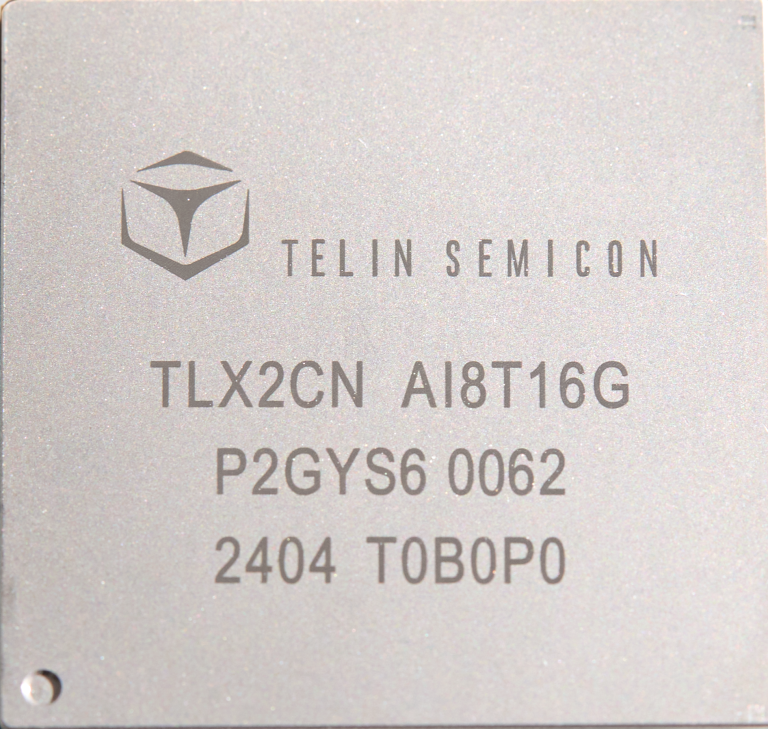

Telin Semicon TLX2CN AI8T16G
High-Performance Enterprise PCIe Gen4 NVMe SSD Controller
Telin TLX2CN：An Advance flagship chip
The Telin Semicon TLX2CN AI8T16G is a flagship enterprise-grade NVMe SSD controller meticulously engineered for the high-end enterprise and data center markets. Featuring a PCIe Gen4x4 host interface and full support for the NVMe 2.0 protocol, it manages up to 16 flash channels with a massive capacity of 32TB.
This controller empowers data center mission-critical applications by delivering a formidable throughput of 7,200MB/s (Sequential Read) and 6,800MB/s (Sequential Write), alongside random R/W performance exceeding 1,750K IOPS—all while maintaining an ultra-low write latency of just 7μs.
Technical Highlights
Software-Defined Flexibility & Elite Performance
TLX2CN AI8T16G achieves a perfect synergy between a software-defined architecture and elite hardware efficiency. Its advanced data exchange mechanism provides the flexibility needed for modern workloads without compromising on raw throughput or processing power.
Next-Gen Front-end & Versatile Back-end
The front-end supports the latest NVMe protocols, while the CPU-driven NAND interface in the back-end ensures broad compatibility across multiple NAND flash types and generations.
Enterprise-Grade Reliability & Redundancy
Anchored by proprietary error-correction (ECC) technology, the chip offers highly adaptable, configurable ECC rates tailored for diverse products and application scenarios. The underlying architecture is designed with product-level redundancy, ensuring maximum data integrity and system
Technical Specifications
| Feature Category | Detailed Specifications | ||
|---|---|---|---|
| Host Interface | PCIe Gen4x4, NVMe 2.0 | ||
| Flash Channels | 16 Channel | ||
| Max Flash Capacity | 32TB | ||
| Sequential Read/Write | 7,200 MB/s / 6,800 MB/s | ||
| Random Read/Write | 1,750K IOPS / 600K IOPS | ||
| Read/Write Latency | 75μs (Read) / 7μs (Write) | ||
| CPU Subsystem | 8-core 64-bit Arm Cortex-A55 + 16-core Arm STAR-MC1 | ||
| AI Capability (NPU) | 8 TOPS with hardware convolution acceleration | ||
| Specialized Engines | Hardware-accelerated Vector Search and Extreme-value Calculation Unit | ||
| Junction Temp (Tj) | -40°C to 125°C | ||
| Queue Management | Up to 256 CQ/SQs per PCIe port | ||
| Debug System | Full Arm CoreSight Debug Infrastructure |
Uncompromising Reliability
End-to-End Data Path Protection
Maintains data integrity from the host to the NAND flash.
LDPC Error Correction + RAID
Advanced error checking and correction for enhanced data reliability.
Power Loss Protection (PLP)
Onboard capacitors ensure data in-flight is written to NAND during power failure.
5-Year Limited Warranty
Backed by our commitment to enterprise-grade quality and support.
